{% tip success %}
Code 基于 Android U ssi、kernel-5.10
{% endtip %}
0. 重启类型
本文整理的重启流程有:
- adb reboot
- power key reboot（弹框确认 or 直接重启）
- panic reboot
整体框架流程见 总流程图。具体代码流程见 重启前流程处理、重启后 reason 传递。

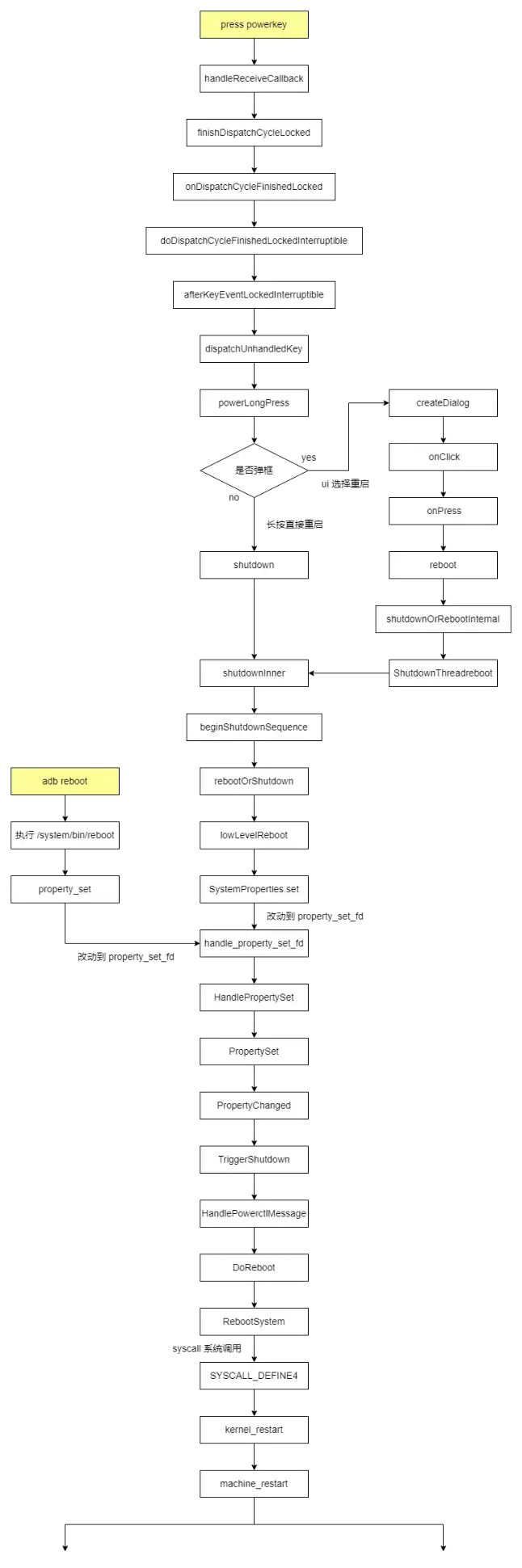

1. 总流程图
2. 重启前流程梳理
2.1 adb reboot
执行 adb reboot 后经过 adb client 端和 server 端的一些交互后
- 电脑侧client端,packages/modules/adb/client/main.cpp的main();
- 内调commandline.cpp的adb_commandline();
- 转到adb_connect_command();
- 内调adb_client.cpp的adb_connect();
- 内调adb_io.cpp的SendProtocolString()，获取 server端的 fd句柄；
- 手机侧server端,services.cpp的service_to_fd();
- 内调services.cpp的daemon_service_to_fd()
- 最终通过 daemon_service_to_fd() 判断参数后调用到 reboot_device()，在 reboot_device() 里面执行 /system/bin/reboot。
// packages/modules/adb/daemon/services.cpp
unique_fd daemon_service_to_fd(std::string_view name, atransport* transport) {
ADB_LOG(Service) << "transport " << transport->serial_name() << " opening service " << name;
#if defined(__ANDROID__) && !defined(__ANDROID_RECOVERY__)
if (name.starts_with("abb:") || name.starts_with("abb_exec:")) {
return execute_abb_command(name);
}
#endif
#if defined(__ANDROID__)
if (name.starts_with("framebuffer:")) {
return create_service_thread("fb", framebuffer_service);
} else if (android::base::ConsumePrefix(&name, "remount:")) {
std::string cmd = "/system/bin/remount ";
cmd += name;
return StartSubprocess(cmd, nullptr, SubprocessType::kRaw, SubprocessProtocol::kNone);
} else if (android::base::ConsumePrefix(&name, "reboot:")) {
return reboot_device(std::string(name));
} else if (name.starts_with("root:")) {
return create_service_thread("root", restart_root_service);
} else if (name.starts_with("unroot:")) {
return create_service_thread("unroot", restart_unroot_service);
} else if (android::base::ConsumePrefix(&name, "backup:")) {
std::string cmd = "/system/bin/bu backup ";
cmd += name;
return StartSubprocess(cmd, nullptr, SubprocessType::kRaw, SubprocessProtocol::kNone);
} else if (name.starts_with("restore:")) {
return StartSubprocess("/system/bin/bu restore", nullptr, SubprocessType::kRaw,
SubprocessProtocol::kNone);
} else if (name.starts_with("disable-verity:")) {
return StartSubprocess("/system/bin/disable-verity", nullptr, SubprocessType::kRaw,
SubprocessProtocol::kNone);
} else if (name.starts_with("enable-verity:")) {
return StartSubprocess("/system/bin/enable-verity", nullptr, SubprocessType::kRaw,
SubprocessProtocol::kNone);
} else if (android::base::ConsumePrefix(&name, "tcpip:")) {
std::string str(name);
[[maybe_unused]] static unique_fd reboot_device(const std::string& name) {
#if defined(__ANDROID_RECOVERY__)
if (!__android_log_is_debuggable()) {
auto reboot_service = [name](unique_fd fd) {
std::string reboot_string = android::base::StringPrintf("reboot,%s", name.c_str());
if (!android::base::SetProperty(ANDROID_RB_PROPERTY, reboot_string)) {
WriteFdFmt(fd.get(), "reboot (%s) failed\n", reboot_string.c_str());
return;
}
while (true) pause();
};
return create_service_thread("reboot", reboot_service);
}
#endif
// Fall through
std::string cmd = "/system/bin/reboot ";
cmd += name;
return StartSubprocess(cmd, nullptr, SubprocessType::kRaw, SubprocessProtocol::kNone);
}
StartSubprocess("/system/bin/reboot ")
--> ForkAndExec(); 系统调用fork()，fork 子进程执行函数 execle()，执行 /system/bin/reboot;
/system/bin/reboot 由 system/core/reboot/reboot.c 编译生成。
// system/core/reboot/reboot.c
int main(int argc, char* argv[]) {
int ret;
size_t prop_len;
char property_val[PROPERTY_VALUE_MAX];
static const char reboot[] = "reboot";
const char* cmd = reboot;
char* optarg = "";
opterr = 0;
do {
int c;
c = getopt(argc, argv, "p");
if (c == -1) {
break;
}
switch (c) {
case 'p':
cmd = "shutdown";
break;
case '?':
fprintf(stderr, "usage: %s [-p] [rebootcommand]\n", argv[0]);
exit(EXIT_FAILURE);
}
} while (1);
if(argc > optind + 1) {
fprintf(stderr, "%s: too many arguments\n", argv[0]);
exit(EXIT_FAILURE);
}
if (argc > optind)
optarg = argv[optind];
if (!optarg || !optarg[0]) optarg = "shell";
prop_len = snprintf(property_val, sizeof(property_val), "%s,%s", cmd, optarg);
if (prop_len >= sizeof(property_val)) {
fprintf(stderr, "%s command too long: %s\n", cmd, optarg);
exit(EXIT_FAILURE);
}
ret = property_set(ANDROID_RB_PROPERTY, property_val);
if (ret < 0) {
perror(cmd);
exit(EXIT_FAILURE);
}
// Don't return early. Give the reboot command time to take effect
// to avoid messing up scripts which do "adb shell reboot && adb wait-for-device"
if (cmd == reboot) {
while (1) {
pause();
}
}
fprintf(stderr, "Done\n");
return 0;
}
调用到 property_set(ANDROID_RB_PROPERTY, property_val);
ANDROID_RB_PROPERTY = sys.powerctl
property_set(ANDROID_RB_PROPERTY, property_val); --> __system_property_set(key, value)
后续prop 处理流程见 重启前 prop 处理流程
2.2 Power key reboot
开机后先注册输入监听事件，长按power键时，kernel层会发出一个事件上来，该事件最终被InputDispatcher.handleReceiveCallback监听到。
xref: lc-s-flame-vendor/frameworks/native/services/inputflinger/dispatcher/InputDispatcher.cpp
int InputDispatcher::handleReceiveCallback(int events, sp<IBinder> connectionToken) {
std::scoped_lock _l(mLock);
sp<Connection> connection = getConnectionLocked(connectionToken);
if (connection == nullptr) {
ALOGW("Received looper callback for unknown input channel token %p. events=0x%x",
connectionToken.get(), events);
return 0; // remove the callback
}
bool notify;
if (!(events & (ALOOPER_EVENT_ERROR | ALOOPER_EVENT_HANGUP))) {
if (!(events & ALOOPER_EVENT_INPUT)) {
ALOGW("channel '%s' ~ Received spurious callback for unhandled poll event. "
"events=0x%x",
connection->getInputChannelName().c_str(), events);
return 1;
}
nsecs_t currentTime = now();
bool gotOne = false;
status_t status = OK;
// 在一个无限循环中，从 connection->inputPublisher
// 接收消费者响应，处理不同类型的响应，例如完成信号或时间轴信息。
for (;;) {
Result<InputPublisher::ConsumerResponse> result =
connection->inputPublisher.receiveConsumerResponse();
if (!result.ok()) {
status = result.error().code();
break;
}
if (std::holds_alternative<InputPublisher::Finished>(*result)) {
const InputPublisher::Finished& finish =
std::get<InputPublisher::Finished>(*result);
// 处理完成信号
finishDispatchCycleLocked(currentTime, connection, finish.seq, finish.handled,
finish.consumeTime);
} else if (std::holds_alternative<InputPublisher::Timeline>(*result)) {
if (shouldReportMetricsForConnection(*connection)) {
const InputPublisher::Timeline& timeline =
std::get<InputPublisher::Timeline>(*result);
mLatencyTracker
.trackGraphicsLatency(timeline.inputEventId,
connection->inputChannel->getConnectionToken(),
std::move(timeline.graphicsTimeline));
}
}
gotOne = true;
}
if (gotOne) {
runCommandsLockedInterruptible();
if (status == WOULD_BLOCK) {
return 1;
}
}
notify = status != DEAD_OBJECT || !connection->monitor;
if (notify) {
ALOGE("channel '%s' ~ Failed to receive finished signal. status=%s(%d)",
connection->getInputChannelName().c_str(), statusToString(status).c_str(),
status);
}
} else {
// Monitor channels are never explicitly unregistered.
// We do it automatically when the remote endpoint is closed so don't warn about them.
const bool stillHaveWindowHandle =
getWindowHandleLocked(connection->inputChannel->getConnectionToken()) != nullptr;
notify = !connection->monitor && stillHaveWindowHandle;
if (notify) {
ALOGW("channel '%s' ~ Consumer closed input channel or an error occurred. events=0x%x",
connection->getInputChannelName().c_str(), events);
}
}
// Remove the channel.
removeInputChannelLocked(connection->inputChannel->getConnectionToken(), notify);
return 0; // remove the callback
}
总结来说，finishDispatchCycleLocked 方法主要用于完成调度周期，包括记录调试信息（如果启用了调试宏）、检查连接状态以避免无效操作，并通知其他系统组件当前调度周期的完成情况。
xref: lc-s-flame-vendor/frameworks/native/services/inputflinger/dispatcher/InputDispatcher.cp
void InputDispatcher::finishDispatchCycleLocked(nsecs_t currentTime,
const sp<Connection>& connection, uint32_t seq,
bool handled, nsecs_t consumeTime) {
#if DEBUG_DISPATCH_CYCLE
ALOGD("channel '%s' ~ finishDispatchCycle - seq=%u, handled=%s",
connection->getInputChannelName().c_str(), seq, toString(handled));
#endif
if (connection->status == Connection::STATUS_BROKEN ||
connection->status == Connection::STATUS_ZOMBIE) {
return;
}
// Notify other system components and prepare to start the next dispatch cycle.
onDispatchCycleFinishedLocked(currentTime, connection, seq, handled, consumeTime);
}
xref: lc-s-flame-vendor/frameworks/native/services/inputflinger/dispatcher/InputDispatcher.cp
void InputDispatcher::onDispatchCycleFinishedLocked(nsecs_t currentTime,
const sp<Connection>& connection, uint32_t seq,
bool handled, nsecs_t consumeTime) {
std::unique_ptr<CommandEntry> commandEntry = std::make_unique<CommandEntry>(
&InputDispatcher::doDispatchCycleFinishedLockedInterruptible);
commandEntry->connection = connection;
commandEntry->eventTime = currentTime;
commandEntry->seq = seq;
commandEntry->handled = handled;
commandEntry->consumeTime = consumeTime;
postCommandLocked(std::move(commandEntry));
}
根据事件类型 (KEY 或 MOTION) 分别调用相应的处理函数 (afterKeyEventLockedInterruptible或 afterMotionEventLockedInterruptible) 进行事件后处理。
xref: lc-s-flame-vendor/frameworks/native/services/inputflinger/dispatcher/InputDispatcher.cp
void InputDispatcher::doDispatchCycleFinishedLockedInterruptible(CommandEntry* commandEntry) {
sp<Connection> connection = commandEntry->connection;
const nsecs_t finishTime = commandEntry->eventTime;
uint32_t seq = commandEntry->seq;
const bool handled = commandEntry->handled;
// Handle post-event policy actions.
std::deque<DispatchEntry*>::iterator dispatchEntryIt = connection->findWaitQueueEntry(seq);
if (dispatchEntryIt == connection->waitQueue.end()) {
return;
}
DispatchEntry* dispatchEntry = *dispatchEntryIt;
const nsecs_t eventDuration = finishTime - dispatchEntry->deliveryTime;
if (eventDuration > SLOW_EVENT_PROCESSING_WARNING_TIMEOUT) {
ALOGI("%s spent %" PRId64 "ms processing %s", connection->getWindowName().c_str(),
ns2ms(eventDuration), dispatchEntry->eventEntry->getDescription().c_str());
}
if (shouldReportFinishedEvent(*dispatchEntry, *connection)) {
mLatencyTracker.trackFinishedEvent(dispatchEntry->eventEntry->id,
connection->inputChannel->getConnectionToken(),
dispatchEntry->deliveryTime, commandEntry->consumeTime,
finishTime);
}
//按键事件
bool restartEvent;
if (dispatchEntry->eventEntry->type == EventEntry::Type::KEY) {
KeyEntry& keyEntry = static_cast<KeyEntry&>(*(dispatchEntry->eventEntry));
restartEvent =
afterKeyEventLockedInterruptible(connection, dispatchEntry, keyEntry, handled);
} else if (dispatchEntry->eventEntry->type == EventEntry::Type::MOTION) {
MotionEntry& motionEntry = static_cast<MotionEntry&>(*(dispatchEntry->eventEntry));
restartEvent = afterMotionEventLockedInterruptible(connection, dispatchEntry, motionEntry,
handled);
} else {
restartEvent = false;
}
// Dequeue the event and start the next cycle.
// Because the lock might have been released, it is possible that the
// contents of the wait queue to have been drained, so we need to double-check
// a few things.
dispatchEntryIt = connection->findWaitQueueEntry(seq);
if (dispatchEntryIt != connection->waitQueue.end()) {
dispatchEntry = *dispatchEntryIt;
connection->waitQueue.erase(dispatchEntryIt);
const sp<IBinder>& connectionToken = connection->inputChannel->getConnectionToken();
mAnrTracker.erase(dispatchEntry->timeoutTime, connectionToken);
if (!connection->responsive) {
connection->responsive = isConnectionResponsive(*connection);
if (connection->responsive) {
// The connection was unresponsive, and now it's responsive.
processConnectionResponsiveLocked(*connection);
}
}
traceWaitQueueLength(*connection);
if (restartEvent && connection->status == Connection::STATUS_NORMAL) {
connection->outboundQueue.push_front(dispatchEntry);
traceOutboundQueueLength(*connection);
} else {
releaseDispatchEntry(dispatchEntry);
}
}
// Start the next dispatch cycle for this connection.
startDispatchCycleLocked(now(), connection);
}
Key event触发之后的中断事件处理入口：
xref: lc-s-flame-vendor/frameworks/native/services/inputflinger/dispatcher/InputDispatcher.cp
bool InputDispatcher::afterKeyEventLockedInterruptible(const sp<Connection>& connection,
DispatchEntry* dispatchEntry,
KeyEntry& keyEntry, bool handled) {
if (keyEntry.flags & AKEY_EVENT_FLAG_FALLBACK) {
if (!handled) {
// Report the key as unhandled, since the fallback was not handled.
mReporter->reportUnhandledKey(keyEntry.id);
}
return false;
}
// Get the fallback key state.
// Clear it out after dispatching the UP.
int32_t originalKeyCode = keyEntry.keyCode;
int32_t fallbackKeyCode = connection->inputState.getFallbackKey(originalKeyCode);
if (keyEntry.action == AKEY_EVENT_ACTION_UP) {
connection->inputState.removeFallbackKey(originalKeyCode);
}
if (handled || !dispatchEntry->hasForegroundTarget()) {
// If the application handles the original key for which we previously
// generated a fallback or if the window is not a foreground window,
// then cancel the associated fallback key, if any.
if (fallbackKeyCode != -1) {
// Dispatch the unhandled key to the policy with the cancel flag.
#if DEBUG_OUTBOUND_EVENT_DETAILS
ALOGD("Unhandled key event: Asking policy to cancel fallback action. "
"keyCode=%d, action=%d, repeatCount=%d, policyFlags=0x%08x",
keyEntry.keyCode, keyEntry.action, keyEntry.repeatCount, keyEntry.policyFlags);
#endif
KeyEvent event = createKeyEvent(keyEntry);
event.setFlags(event.getFlags() | AKEY_EVENT_FLAG_CANCELED);
mLock.unlock();
mPolicy->dispatchUnhandledKey(connection->inputChannel->getConnectionToken(), &event,
keyEntry.policyFlags, &event);
mLock.lock();
// Cancel the fallback key.
if (fallbackKeyCode != AKEYCODE_UNKNOWN) {
CancelationOptions options(CancelationOptions::CANCEL_FALLBACK_EVENTS,
"application handled the original non-fallback key "
"or is no longer a foreground target, "
"canceling previously dispatched fallback key");
options.keyCode = fallbackKeyCode;
synthesizeCancelationEventsForConnectionLocked(connection, options);
}
connection->inputState.removeFallbackKey(originalKeyCode);
}
} else {
......
return false;
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/jni/com_android_server_input_InputManagerService.cpp
bool NativeInputManager::dispatchUnhandledKey(const sp<IBinder>& token,
const KeyEvent* keyEvent, uint32_t policyFlags, KeyEvent* outFallbackKeyEvent) {
ATRACE_CALL();
// Policy:
// - Ignore untrusted events and do not perform default handling.
bool result = false;
if (policyFlags & POLICY_FLAG_TRUSTED) {
JNIEnv* env = jniEnv();
ScopedLocalFrame localFrame(env);
// Note: tokenObj may be null.
jobject tokenObj = javaObjectForIBinder(env, token);
jobject keyEventObj = android_view_KeyEvent_fromNative(env, keyEvent);
if (keyEventObj) {
//回调到JAVA层InputManagerService.java
jobject fallbackKeyEventObj = env->CallObjectMethod(mServiceObj,
gServiceClassInfo.dispatchUnhandledKey,
tokenObj, keyEventObj, policyFlags);
if (checkAndClearExceptionFromCallback(env, "dispatchUnhandledKey")) {
fallbackKeyEventObj = nullptr;
}
android_view_KeyEvent_recycle(env, keyEventObj);
env->DeleteLocalRef(keyEventObj);
if (fallbackKeyEventObj) {
// Note: outFallbackKeyEvent may be the same object as keyEvent.
if (!android_view_KeyEvent_toNative(env, fallbackKeyEventObj,
outFallbackKeyEvent)) {
result = true;
}
android_view_KeyEvent_recycle(env, fallbackKeyEventObj);
env->DeleteLocalRef(fallbackKeyEventObj);
}
} else {
ALOGE("Failed to obtain key event object for dispatchUnhandledKey.");
}
}
return result;
}
事件是从native层的InputDispatcher.cpp一直传到java层，在native层主要做了keyevent的封装，循环等待下一次事件的分发。
由native层com_android_server_input_InputManagerService.cpp的NativeInputManager::dispatchUnhandledKey回调private KeyEvent dispatchUnhandledKey。
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/input/InputManagerService.java
private KeyEvent dispatchUnhandledKey(IBinder focus, KeyEvent event, int policyFlags) {
return mWindowManagerCallbacks.dispatchUnhandledKey(focus, event, policyFlags);
}
mWindowManagerCallbacks是在SystemServer.startOtherServices得到InputManagerCallback并设置的，所以dispatchUnhandledKey是在InputManagerCallback.java
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/wm/InputManagerCallback.java
/**
* Provides an opportunity for the window manager policy to process a key that
* the application did not handle.
*/
@Override
public KeyEvent dispatchUnhandledKey(
IBinder focusedToken, KeyEvent event, int policyFlags) {
return mService.mPolicy.dispatchUnhandledKey(focusedToken, event, policyFlags);
}
直接看它的调用栈：
PhoneWindowManager.dispatchUnhandledKey-->PhoneWindowManager.interceptFallback --> PhoneWindowManager.interceptKeyBeforeDispatching -->PhoneWindowManager.interceptPowerKeyDown -->PhoneWindowManager.powerLongPress （此处区分是直接重启还是弹框重启）-->PhoneWindowManager. showGlobalActionsInternal-->GlobalActions.showDialog -->LegacyGlobalActions.showDialog（弹框重启）
2.3 长按键10s直接重启
长按键涉及底层按键时间配置：
// vendor/qcom/non-hlos-sm4450/zprojects/HMI_C3F_COMMON/BOOT.MXF.2.0/boot_images/boot/Settings/Clarence/Core/PMIC/pm.dtsi
18 s2-kpdpwr {
19 enable = <PM_TRUE>;
20 reset-type = <PM_HARD_RESET>;
21 s1-ms = <4480>;
22 s2-ms = <2000>;
23 };
24
25 s2-kpdpwr-resin {
26 enable = <PM_TRUE>;
27 reset-type = <PM_WARM_RESET>;
28 s1-ms = <4480>;
29 s2-ms = <500>;
30 };
2.4 ui弹窗选择重启
private void powerLongPress(long eventTime) {
//获取用户的behavior
final int behavior = getResolvedLongPressOnPowerBehavior();
Slog.d(TAG, "powerLongPress: eventTime=" + eventTime
+ " mLongPressOnPowerBehavior=" + mLongPressOnPowerBehavior);
switch (behavior) {
case LONG_PRESS_POWER_NOTHING:
break;
case LONG_PRESS_POWER_GLOBAL_ACTIONS:
mPowerKeyHandled = true;
performHapticFeedback(HapticFeedbackConstants.LONG_PRESS, false,
"Power - Long Press - Global Actions");
showGlobalActions();
break;
case LONG_PRESS_POWER_SHUT_OFF:
case LONG_PRESS_POWER_SHUT_OFF_NO_CONFIRM://直接重启，无需按键确认
mPowerKeyHandled = true;
performHapticFeedback(HapticFeedbackConstants.LONG_PRESS, false,
"Power - Long Press - Shut Off");
sendCloseSystemWindows(SYSTEM_DIALOG_REASON_GLOBAL_ACTIONS);
//mWindowManagerFuncs是WindowManagerService的实例
mWindowManagerFuncs.shutdown(behavior == LONG_PRESS_POWER_SHUT_OFF);
break;
case LONG_PRESS_POWER_GO_TO_VOICE_ASSIST:
mPowerKeyHandled = true;
performHapticFeedback(HapticFeedbackConstants.LONG_PRESS, false,
"Power - Long Press - Go To Voice Assist");
// Some devices allow the voice assistant intent during setup (and use that intent
// to launch something else, like Settings). So we explicitly allow that via the
// config_allowStartActivityForLongPressOnPowerInSetup resource in config.xml.
launchVoiceAssist(mAllowStartActivityForLongPressOnPowerDuringSetup);
break;
case LONG_PRESS_POWER_ASSISTANT:
mPowerKeyHandled = true;
performHapticFeedback(HapticFeedbackConstants.ASSISTANT_BUTTON, false,
"Power - Long Press - Go To Assistant");
final int powerKeyDeviceId = Integer.MIN_VALUE;
launchAssistAction(null, powerKeyDeviceId, eventTime,
AssistUtils.INVOCATION_TYPE_POWER_BUTTON_LONG_PRESS);
break;
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/wm/WindowManagerService.java
// Called by window manager policy. Not exposed externally.
@Override public void shutdown(boolean confirm) {
// Pass in the UI context, since ShutdownThread requires it (to show UI).
ShutdownThread.shutdown(ActivityThread.currentActivityThread().getSystemUiContext(),
PowerManager.SHUTDOWN_USER_REQUESTED, confirm);
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/ShutdownThread.java
/**
* Request a clean shutdown, waiting for subsystems to clean up their
* state etc. Must be called from a Looper thread in which its UI
* is shown.
*
* @param context Context used to display the shutdown progress dialog. This must be a context
* suitable for displaying UI (aka Themable).
* @param reason code to pass to android_reboot() (e.g. "userrequested"), or null.
* @param confirm true if user confirmation is needed before shutting down.
*/
public static void shutdown(final Context context, String reason, boolean confirm) {
mReboot = false;
mRebootSafeMode = false;
mReason = reason;
shutdownInner(context, confirm);
}
最后走到LegacyGlobalActions类，该类是关机提示框的实现类，提示框的显示、逻辑处理都是在此实现，对话框显示的不仅仅是关机/重启，还有飞行模式、截图、锁定等，不同的手机开发商定制的功能也不同，对话框的创建逻辑
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/policy/LegacyGlobalActions.java
/**
* Create the global actions dialog.
* @return A new dialog.
*/
private ActionsDialog createDialog() {
.......
ArraySet<String> addedKeys = new ArraySet<String>();
for (int i = 0; i < defaultActions.length; i++) {
String actionKey = defaultActions[i];
if (addedKeys.contains(actionKey)) {
// If we already have added this, don't add it again.
continue;
}
if (GLOBAL_ACTION_KEY_POWER.equals(actionKey)) {
mItems.add(new PowerAction(mContext, mWindowManagerFuncs));
} else if (GLOBAL_ACTION_KEY_AIRPLANE.equals(actionKey)) {
mItems.add(mAirplaneModeOn);
} else if (GLOBAL_ACTION_KEY_BUGREPORT.equals(actionKey)) {
if (Settings.Global.getInt(mContext.getContentResolver(),
Settings.Global.BUGREPORT_IN_POWER_MENU, 0) != 0 && isCurrentUserOwner()) {
mItems.add(new BugReportAction());
}
} else if (GLOBAL_ACTION_KEY_SILENT.equals(actionKey)) {
if (mShowSilentToggle) {
mItems.add(mSilentModeAction);
}
} else if (GLOBAL_ACTION_KEY_USERS.equals(actionKey)) {
if (SystemProperties.getBoolean("fw.power_user_switcher", false)) {
addUsersToMenu(mItems);
}
} else if (GLOBAL_ACTION_KEY_SETTINGS.equals(actionKey)) {
mItems.add(getSettingsAction());
} else if (GLOBAL_ACTION_KEY_LOCKDOWN.equals(actionKey)) {
mItems.add(getLockdownAction());
} else if (GLOBAL_ACTION_KEY_VOICEASSIST.equals(actionKey)) {
mItems.add(getVoiceAssistAction());
} else if (GLOBAL_ACTION_KEY_ASSIST.equals(actionKey)) {
mItems.add(getAssistAction());
} else if (GLOBAL_ACTION_KEY_RESTART.equals(actionKey)) {
mItems.add(new RestartAction(mContext, mWindowManagerFuncs));
} else {
Log.e(TAG, "Invalid global action key " + actionKey);
}
// Add here so we don't add more than one.
addedKeys.add(actionKey);
}
if (mEmergencyAffordanceManager.needsEmergencyAffordance()) {
mItems.add(getEmergencyAction());
}
mAdapter = new ActionsAdapter(mContext, mItems,
() -> mDeviceProvisioned, () -> mKeyguardShowing);
AlertController.AlertParams params = new AlertController.AlertParams(mContext);
params.mAdapter = mAdapter;
params.mOnClickListener = this;
params.mForceInverseBackground = true;
ActionsDialog dialog = new ActionsDialog(mContext, params);
dialog.setCanceledOnTouchOutside(false); // Handled by the custom class.
dialog.getListView().setItemsCanFocus(true);
dialog.getListView().setLongClickable(true);
dialog.getListView().setOnItemLongClickListener(
new AdapterView.OnItemLongClickListener() {
@Override
public boolean onItemLongClick(AdapterView<?> parent, View view, int position,
long id) {
final Action action = mAdapter.getItem(position);
if (action instanceof LongPressAction) {
return ((LongPressAction) action).onLongPress();
}
return false;
}
});
dialog.getWindow().setType(WindowManager.LayoutParams.TYPE_KEYGUARD_DIALOG);
// Don't acquire soft keyboard focus, to avoid destroying state when capturing bugreports
dialog.getWindow().setFlags(FLAG_ALT_FOCUSABLE_IM, FLAG_ALT_FOCUSABLE_IM);
dialog.setOnDismissListener(this);
return dialog;
}
对话框Item的点击事件，点击事件后的onPress()是RestartAction里的onPress()
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/policy/LegacyGlobalActions.java
@Override
public void onClick(DialogInterface dialog, int which) {
if (!(mAdapter.getItem(which) instanceof SilentModeTriStateAction)) {
dialog.dismiss();
}
mAdapter.getItem(which).onPress();
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/policy/RestartAction.java
@Override
public void onPress() {
mWindowManagerFuncs.reboot(false /* confirm */);
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/wm/WindowManagerService.java
@Override
public void reboot(boolean confirm) {
// Pass in the UI context, since ShutdownThread requires it (to show UI).
ShutdownThread.reboot(ActivityThread.currentActivityThread().getSystemUiContext(),
PowerManager.SHUTDOWN_USER_REQUESTED, confirm);
}
RestartAction.onPress()直接调用了mWindowManagerFuncs.reboot(false)，mWindowManagerFuncs是WindowManagerService的实例，直接看它里面的reboot函数，该函数直接调用了ShutdownThread.reboot
ShutdownThread是重启/关机的类，重启/关机的逻辑主要在此类实现。
先看看此类的基本结构，此类是final类，不能被其他类继承，也不能被其他类覆盖，属于线程类，继承Thread。
ShutdownThread.reboot进入到了shutdownInner然后调用ShutdownThread.beginShutdownSequence，在这里主要做了显示关机进度对话框、保持屏幕打开，启动线程。
xref: /lc-s-flame-vendor/frameworks/base/core/java/android/os/PowerManager.java
/**
* Reboot the device. Will not return if the reboot is successful.
* <p>
* Requires the {@link android.Manifest.permission#REBOOT} permission.
* </p>
* <p>
* If the {@code reason} string contains ",quiescent", then the screen stays off during reboot
* and is not turned on again until the user triggers the device to wake up (for example,
* by pressing the power key).
* This behavior applies to Android TV devices launched on Android 11 (API level 30) or higher.
* </p>
*
* @param reason code to pass to the kernel (e.g., "recovery") to
* request special boot modes, or null.
* @throws UnsupportedOperationException if userspace reboot was requested on a device that
* doesn't support it.
*/
@RequiresPermission(permission.REBOOT)
public void reboot(@Nullable String reason) {
if (REBOOT_USERSPACE.equals(reason) && !isRebootingUserspaceSupported()) {
throw new UnsupportedOperationException(
"Attempted userspace reboot on a device that doesn't support it");
}
try {
mService.reboot(false, reason, true);
} catch (RemoteException e) {
throw e.rethrowFromSystemServer();
}
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/PowerManagerService.java
/**
* Reboots the device.
*
* @param confirm If true, shows a reboot confirmation dialog.
* @param reason The reason for the reboot, or null if none.
* @param wait If true, this call waits for the reboot to complete and does not return.
*/
@Override // Binder call
params://false,reason,true
public void reboot(boolean confirm, @Nullable String reason, boolean wait) {
mContext.enforceCallingOrSelfPermission(android.Manifest.permission.REBOOT, null);
if (PowerManager.REBOOT_RECOVERY.equals(reason)
|| PowerManager.REBOOT_RECOVERY_UPDATE.equals(reason)) {
mContext.enforceCallingOrSelfPermission(android.Manifest.permission.RECOVERY, null);
}
ShutdownCheckPoints.recordCheckPoint(Binder.getCallingPid(), reason);
final long ident = Binder.clearCallingIdentity();
try {//params:HALT_MODE_REBOOT，false, reason, true
shutdownOrRebootInternal(HALT_MODE_REBOOT, confirm, reason, wait);
} finally {
Binder.restoreCallingIdentity(ident);
}
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/PowerManagerService.java
//params:HALT_MODE_REBOOT，false, reason, true
private void shutdownOrRebootInternal(final @HaltMode int haltMode, final boolean confirm,
@Nullable final String reason, boolean wait) {
if (PowerManager.REBOOT_USERSPACE.equals(reason)) {
if (!PowerManager.isRebootingUserspaceSupportedImpl()) {
throw new UnsupportedOperationException(
"Attempted userspace reboot on a device that doesn't support it");
}
UserspaceRebootLogger.noteUserspaceRebootWasRequested();
}
if (mHandler == null || !mSystemReady) {
if (RescueParty.isAttemptingFactoryReset()) {
// If we're stuck in a really low-level reboot loop, and a
// rescue party is trying to prompt the user for a factory data
// reset, we must GET TO DA CHOPPA!
// No check point from ShutdownCheckPoints will be dumped at this state.
PowerManagerService.lowLevelReboot(reason);
} else {
throw new IllegalStateException("Too early to call shutdown() or reboot()");
}
}
Runnable runnable = new Runnable() {
@Override
public void run() {
synchronized (this) {
if (haltMode == HALT_MODE_REBOOT_SAFE_MODE) {
ShutdownThread.rebootSafeMode(getUiContext(), confirm);
} else if (haltMode == HALT_MODE_REBOOT) {
ShutdownThread.reboot(getUiContext(), reason, confirm);
} else {
ShutdownThread.shutdown(getUiContext(), reason, confirm);
}
}
}
};
// ShutdownThread must run on a looper capable of displaying the UI.
Message msg = Message.obtain(UiThread.getHandler(), runnable);
msg.setAsynchronous(true);
UiThread.getHandler().sendMessage(msg);
// PowerManager.reboot() is documented not to return so just wait for the inevitable.
if (wait) {
synchronized (runnable) {
while (true) {
try {
runnable.wait();
} catch (InterruptedException e) {
}
}
}
}
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/ShutdownThread.java
/**
* Request a clean shutdown, waiting for subsystems to clean up their
* state etc. Must be called from a Looper thread in which its UI
* is shown.
*
* @param context Context used to display the shutdown progress dialog. This must be a context
* suitable for displaying UI (aka Themable).
* @param reason code to pass to the kernel (e.g. "recovery"), or null.
* @param confirm true if user confirmation is needed before shutting down.
*/
//params:getUiContext(), reason, false[不进行弹框确认]
public static void reboot(final Context context, String reason, boolean confirm) {
mReboot = true;
mRebootSafeMode = false;
mRebootHasProgressBar = false;
mReason = reason;
shutdownInner(context, confirm);
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/ShutdownThread.java
//params:getUiContext(), reason, false[不进行弹框确认]
private static void shutdownInner(final Context context, boolean confirm) {
// ShutdownThread is called from many places, so best to verify here that the context passed
// in is themed.
context.assertRuntimeOverlayThemable();
// ensure that only one thread is trying to power down.
// any additional calls are just returned
synchronized (sIsStartedGuard) {
if (sIsStarted) {
Log.d(TAG, "Request to shutdown already running, returning.");
return;
}
}
// Add checkpoint for this shutdown attempt. The user might still cancel the dialog, but
// this point preserves the system trace of the trigger point of the ShutdownThread.
ShutdownCheckPoints.recordCheckPoint(/* reason= */ null);
final int longPressBehavior = context.getResources().getInteger(
com.android.internal.R.integer.config_longPressOnPowerBehavior);
final int resourceId = mRebootSafeMode
? com.android.internal.R.string.reboot_safemode_confirm
: (longPressBehavior == 2
? com.android.internal.R.string.shutdown_confirm_question
: com.android.internal.R.string.shutdown_confirm);
Log.d(TAG, "Notifying thread to start shutdown longPressBehavior=" + longPressBehavior);
if (confirm) {
final CloseDialogReceiver closer = new CloseDialogReceiver(context);
if (sConfirmDialog != null) {
sConfirmDialog.dismiss();
}
sConfirmDialog = new AlertDialog.Builder(context)
.setTitle(mRebootSafeMode
? com.android.internal.R.string.reboot_safemode_title
: com.android.internal.R.string.power_off)
.setMessage(resourceId)
.setPositiveButton(com.android.internal.R.string.yes, new DialogInterface.OnClickListener() {
public void onClick(DialogInterface dialog, int which) {
beginShutdownSequence(context);
}
})
.setNegativeButton(com.android.internal.R.string.no, null)
.create();
closer.dialog = sConfirmDialog;
sConfirmDialog.setOnDismissListener(closer);
sConfirmDialog.getWindow().setType(WindowManager.LayoutParams.TYPE_KEYGUARD_DIALOG);
sConfirmDialog.show();
} else {
beginShutdownSequence(context);
}
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/ShutdownThread.java
// UIcontext
private static void beginShutdownSequence(Context context) {
synchronized (sIsStartedGuard) {
if (sIsStarted) {//shutdown操作正在执行，则直接返回
Log.d(TAG, "Shutdown sequence already running, returning.");
return;
}
sIsStarted = true;
}
sInstance.mProgressDialog = showShutdownDialog(context);
sInstance.mContext = context;
sInstance.mPowerManager = (PowerManager)context.getSystemService(Context.POWER_SERVICE);
// make sure we never fall asleep again
sInstance.mCpuWakeLock = null;
try {
sInstance.mCpuWakeLock = sInstance.mPowerManager.newWakeLock(
PowerManager.PARTIAL_WAKE_LOCK, TAG + "-cpu");
sInstance.mCpuWakeLock.setReferenceCounted(false);
sInstance.mCpuWakeLock.acquire();
} catch (SecurityException e) {
Log.w(TAG, "No permission to acquire wake lock", e);
sInstance.mCpuWakeLock = null;
}
// also make sure the screen stays on for better user experience
sInstance.mScreenWakeLock = null;
if (sInstance.mPowerManager.isScreenOn()) {
try {
sInstance.mScreenWakeLock = sInstance.mPowerManager.newWakeLock(
PowerManager.FULL_WAKE_LOCK, TAG + "-screen");
sInstance.mScreenWakeLock.setReferenceCounted(false);
sInstance.mScreenWakeLock.acquire();
} catch (SecurityException e) {
Log.w(TAG, "No permission to acquire wake lock", e);
sInstance.mScreenWakeLock = null;
}
}
if (SecurityLog.isLoggingEnabled()) {
SecurityLog.writeEvent(SecurityLog.TAG_OS_SHUTDOWN);
}
// start the thread that initiates shutdown
sInstance.mHandler = new Handler() {
};
// static instance of this thread
// private static final ShutdownThread sInstance = new ShutdownThread();
//启动线程来执行shutdown初始化
sInstance.start(); ------>.start会调用ShutdownThread的run()方法
xref: /lc-s-flame-vendor/fameworks/base/services/core/java/com/android/server/power/ShutdownThread.java
public void run() {
TimingsTraceLog shutdownTimingLog = newTimingsLog();
shutdownTimingLog.traceBegin("SystemServerShutdown");
metricShutdownStart();
metricStarted(METRIC_SYSTEM_SERVER);
// Start dumping check points for this shutdown in a separate thread.
Thread dumpCheckPointsThread = ShutdownCheckPoints.newDumpThread(
new File(CHECK_POINTS_FILE_BASENAME));
dumpCheckPointsThread.start();
BroadcastReceiver br = new BroadcastReceiver() {
@Override public void onReceive(Context context, Intent intent) {
// We don't allow apps to cancel this, so ignore the result.
actionDone();
}
};
/*
* Write a system property in case the system_server reboots before we
* get to the actual hardware restart. If that happens, we'll retry at
* the beginning of the SystemServer startup.
*/
{
String reason = (mReboot ? "1" : "0") + (mReason != null ? mReason : "");
SystemProperties.set(SHUTDOWN_ACTION_PROPERTY, reason);
}
/*
* If we are rebooting into safe mode, write a system property
* indicating so.
*/
if (mRebootSafeMode) {
//如果需要重启进入安全模式，则设置"persist.sys.safemode"=1
SystemProperties.set(REBOOT_SAFEMODE_PROPERTY, "1");
}
shutdownTimingLog.traceBegin("DumpPreRebootInfo");
try {
Slog.i(TAG, "Logging pre-reboot information...");
PreRebootLogger.log(mContext);
} catch (Exception e) {
Slog.e(TAG, "Failed to log pre-reboot information", e);
}
shutdownTimingLog.traceEnd(); // DumpPreRebootInfo
metricStarted(METRIC_SEND_BROADCAST);
shutdownTimingLog.traceBegin("SendShutdownBroadcast");
Log.i(TAG, "Sending shutdown broadcast...");
// First send the high-level shut down broadcast.
mActionDone = false;
Intent intent = new Intent(Intent.ACTION_SHUTDOWN);
intent.addFlags(Intent.FLAG_RECEIVER_FOREGROUND | Intent.FLAG_RECEIVER_REGISTERED_ONLY);
mContext.sendOrderedBroadcastAsUser(intent,
UserHandle.ALL, null, br, mHandler, 0, null, null);
final long endTime = SystemClock.elapsedRealtime() + MAX_BROADCAST_TIME;
synchronized (mActionDoneSync) {
while (!mActionDone) {
long delay = endTime - SystemClock.elapsedRealtime();
if (delay <= 0) {
Log.w(TAG, "Shutdown broadcast timed out");
break;
} else if (mRebootHasProgressBar) {
int status = (int)((MAX_BROADCAST_TIME - delay) * 1.0 *
BROADCAST_STOP_PERCENT / MAX_BROADCAST_TIME);
sInstance.setRebootProgress(status, null);
}
try {
mActionDoneSync.wait(Math.min(delay, ACTION_DONE_POLL_WAIT_MS));
} catch (InterruptedException e) {
}
}
}
if (mRebootHasProgressBar) {
sInstance.setRebootProgress(BROADCAST_STOP_PERCENT, null);
}
shutdownTimingLog.traceEnd(); // SendShutdownBroadcast
metricEnded(METRIC_SEND_BROADCAST);
Log.i(TAG, "Shutting down activity manager...");
shutdownTimingLog.traceBegin("ShutdownActivityManager");
metricStarted(METRIC_AM);
final IActivityManager am =
IActivityManager.Stub.asInterface(ServiceManager.checkService("activity"));
if (am != null) {
try {
//关闭AMS
am.shutdown(MAX_BROADCAST_TIME);
} catch (RemoteException e) {
}
}
if (mRebootHasProgressBar) {
sInstance.setRebootProgress(ACTIVITY_MANAGER_STOP_PERCENT, null);
}
shutdownTimingLog.traceEnd();// ShutdownActivityManager
metricEnded(METRIC_AM);
Log.i(TAG, "Shutting down package manager...");
shutdownTimingLog.traceBegin("ShutdownPackageManager");
metricStarted(METRIC_PM);
final PackageManagerService pm = (PackageManagerService)
ServiceManager.getService("package");
if (pm != null) {
//关闭PMS
pm.shutdown();
}
if (mRebootHasProgressBar) {
sInstance.setRebootProgress(PACKAGE_MANAGER_STOP_PERCENT, null);
}
shutdownTimingLog.traceEnd(); // ShutdownPackageManager
metricEnded(METRIC_PM);
//关闭radios
// Shutdown radios.
shutdownTimingLog.traceBegin("ShutdownRadios");
metricStarted(METRIC_RADIOS);
shutdownRadios(MAX_RADIO_WAIT_TIME);
if (mRebootHasProgressBar) {
sInstance.setRebootProgress(RADIO_STOP_PERCENT, null);
}
shutdownTimingLog.traceEnd(); // ShutdownRadios
metricEnded(METRIC_RADIOS);
if (mRebootHasProgressBar) {
sInstance.setRebootProgress(MOUNT_SERVICE_STOP_PERCENT, null);
// If it's to reboot to install an update and uncrypt hasn't been
// done yet, trigger it now.
uncrypt();
}
// Wait for the check points dump thread to finish, or kill it if not finished in time.
shutdownTimingLog.traceBegin("ShutdownCheckPointsDumpWait");
try {
dumpCheckPointsThread.join(MAX_CHECK_POINTS_DUMP_WAIT_TIME);
} catch (InterruptedException ex) {
}
shutdownTimingLog.traceEnd(); // ShutdownCheckPointsDumpWait
shutdownTimingLog.traceEnd(); // SystemServerShutdown
metricEnded(METRIC_SYSTEM_SERVER);
saveMetrics(mReboot, mReason);
// Remaining work will be done by init, including vold shutdown
rebootOrShutdown(mContext, mReboot, mReason);
}
/**
* Do not call this directly. Use {@link #reboot(Context, String, boolean)}
* or {@link #shutdown(Context, String, boolean)} instead.
*
* @param context Context used to vibrate or null without vibration
* @param reboot true to reboot or false to shutdown
* @param reason reason for reboot/shutdown
*/
public static void rebootOrShutdown(final Context context, boolean reboot, String reason) {
String subsysProp;
subsysProp = SystemProperties.get("vendor.peripheral.shutdown_critical_list",
"ERROR");
//If we don't have the shutdown critical subsystem list we can't
//really do anything. Proceed with full system shutdown.
if (!subsysProp.equals("ERROR")) {
Log.i(TAG, "Shutdown critical subsyslist is :"+subsysProp+": ");
Log.i(TAG, "Waiting for a maximum of " +
(VENDOR_SUBSYS_MAX_WAIT_MS) + "ms");
String[] subsysList = subsysProp.split(" ");
int wait_count = 0;
boolean okToShutdown = true;
String subsysState;
int subsysListLength = subsysList.length;
do {
okToShutdown = true;
for (int i = 0; i < subsysListLength; i++) {
subsysState =
SystemProperties.get(
"vendor.peripheral." +
subsysList[i] +
".state",
"ERROR");
if(subsysState.equals("ONLINE")) {
//We only want to delay shutdown while
//one of the shutdown critical
//subsystems still shows as 'ONLINE'.
okToShutdown = false;
}
}
if (okToShutdown == false) {
SystemClock.sleep(VENDOR_SUBSYS_STATE_CHECK_INTERVAL_MS);
wait_count++;
}
} while (okToShutdown != true &&
wait_count < (VENDOR_SUBSYS_MAX_WAIT_MS/VENDOR_SUBSYS_STATE_CHECK_INTERVAL_MS));
if (okToShutdown != true) {
for (int i = 0; i < subsysList.length; i++) {
subsysState =
SystemProperties.get(
"vendor.peripheral." +
subsysList[i] +
".state",
"ERROR");
if(subsysState.equals("ONLINE")) {
Log.w(TAG, "Subsystem " + subsysList[i]+
"did not shut down within timeout");
}
}
} else {
Log.i(TAG, "Vendor subsystem(s) shutdown successful");
}
}
if (reboot) {
Log.i(TAG, "Rebooting, reason: " + reason);
PowerManagerService.lowLevelReboot(reason);
Log.e(TAG, "Reboot failed, will attempt shutdown instead");
reason = null;
} else if (SHUTDOWN_VIBRATE_MS > 0 && context != null) {
// vibrate before shutting down
Vibrator vibrator = new SystemVibrator(context);
try {
vibrator.vibrate(SHUTDOWN_VIBRATE_MS, VIBRATION_ATTRIBUTES);
} catch (Exception e) {
// Failure to vibrate shouldn't interrupt shutdown. Just log it.
Log.w(TAG, "Failed to vibrate during shutdown.", e);
}
// vibrator is asynchronous so we need to wait to avoid shutting down too soon.
try {
Thread.sleep(SHUTDOWN_VIBRATE_MS);
} catch (InterruptedException unused) {
}
}
// Shutdown power
Log.i(TAG, "Performing low-level shutdown...");
PowerManagerService.lowLevelShutdown(reason);
}
xref: /lc-s-flame-vendor/frameworks/base/services/core/java/com/android/server/power/PowerManagerService.java
/**
* Low-level function to reboot the device. On success, this
* function doesn't return. If more than 20 seconds passes from
* the time a reboot is requested, this method returns.
*
* @param reason code to pass to the kernel (e.g. "recovery"), or null.
*/
public static void lowLevelReboot(String reason) {
if (reason == null) {
reason = "";
}
// If the reason is "quiescent", it means that the boot process should proceed
// without turning on the screen/lights.
// The "quiescent" property is sticky, meaning that any number
// of subsequent reboots should honor the property until it is reset.
if (reason.equals(PowerManager.REBOOT_QUIESCENT)) {
sQuiescent = true;
reason = "";
} else if (reason.endsWith("," + PowerManager.REBOOT_QUIESCENT)) {
sQuiescent = true;
reason = reason.substring(0,
reason.length() - PowerManager.REBOOT_QUIESCENT.length() - 1);
}
if (reason.equals(PowerManager.REBOOT_RECOVERY)
|| reason.equals(PowerManager.REBOOT_RECOVERY_UPDATE)) {
reason = "recovery";
}
if (sQuiescent) {
// Pass the optional "quiescent" argument to the bootloader to let it know
// that it should not turn the screen/lights on.
reason = reason + ",quiescent";
}
//设置属性为sys.powerctl + reboot + reason
SystemProperties.set("sys.powerctl", "reboot," + reason);
try {
Thread.sleep(20 * 1000L);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
Slog.wtf(TAG, "Unexpected return from lowLevelReboot!");
}
SystemProperties.set 调用到 native_set，native_set 绑定函数 SystemProperties_set ，最终调用到 __system_property_set。
int register_android_os_SystemProperties(JNIEnv *env)
{
const JNINativeMethod method_table[] = {
{ "native_get",
"(Ljava/lang/String;Ljava/lang/String;)Ljava/lang/String;",
(void*) SystemProperties_getSS },
{ "native_get_int", "(Ljava/lang/String;I)I",
(void*) SystemProperties_get_integral<jint> },
{ "native_get_long", "(Ljava/lang/String;J)J",
(void*) SystemProperties_get_integral<jlong> },
{ "native_get_boolean", "(Ljava/lang/String;Z)Z",
(void*) SystemProperties_get_boolean },
{ "native_find",
"(Ljava/lang/String;)J",
(void*) SystemProperties_find },
{ "native_get",
"(J)Ljava/lang/String;",
(void*) SystemProperties_getH },
{ "native_get_int", "(JI)I",
(void*) SystemProperties_get_integralH<jint> },
{ "native_get_long", "(JJ)J",
(void*) SystemProperties_get_integralH<jlong> },
{ "native_get_boolean", "(JZ)Z",
(void*) SystemProperties_get_booleanH },
{ "native_set", "(Ljava/lang/String;Ljava/lang/String;)V",
(void*) SystemProperties_set },
{ "native_add_change_callback", "()V",
(void*) SystemProperties_add_change_callback },
{ "native_report_sysprop_change", "()V",
(void*) SystemProperties_report_sysprop_change },
};
return RegisterMethodsOrDie(env, "android/os/SystemProperties",
method_table, NELEM(method_table));
}
void SystemProperties_set(JNIEnv *env, jobject clazz, jstring keyJ,
jstring valJ)
{
ScopedUtfChars key(env, keyJ);
if (!key.c_str()) {
return;
}
std::optional<ScopedUtfChars> value;
if (valJ != nullptr) {
value.emplace(env, valJ);
if (!value->c_str()) {
return;
}
}
bool success;
#if defined(__BIONIC__)
success = !__system_property_set(key.c_str(), value ? value->c_str() : "");
#else
success = android::base::SetProperty(key.c_str(), value ? value->c_str() : "");
#endif
if (!success) {
jniThrowException(env, "java/lang/RuntimeException",
"failed to set system property (check logcat for reason)");
}
}
后续prop 处理流程见 重启前 prop 处理流程
2.5 panic reboot
我们通过各种类型 panic 的 panic task 的栈数据进行回溯，会发现 Kernel panic 最后都会调用 panic，在 panic 里会调用到 emergency_restart，再调用 machine_restart。
// kernel_platform/common/kernel/panic.c
void panic(const char *fmt, ...)
if (panic_timeout != 0) {
/*
* This will not be a clean reboot, with everything
* shutting down. But if there is a chance of
* rebooting the system it will be rebooted.
*/
if (panic_reboot_mode != REBOOT_UNDEFINED)
reboot_mode = panic_reboot_mode;
emergency_restart();
}
emergency_restart ---> machine_emergency_restart
// kernel_platform/common/kernel/reboot.c
void emergency_restart(void)
{
kmsg_dump(KMSG_DUMP_EMERG);
machine_emergency_restart();
}
EXPORT_SYMBOL_GPL(emergency_restart);
machine_emergency_restart ---> machine_restart
// kernel_platform/common/include/asm-generic/emergency-restart.h
static inline void machine_emergency_restart(void)
{
machine_restart(NULL);
}
后续流程见 重启前 kernel 部分 reboot 流程
2.6 重启前 prop 处理流程
property_set 和 SystemProperties.set 最终都会调用到 __system_property_set
这边要注意根据头文件确认 __system_property_set 函数为：
// bionic/libc/bionic/system_property_set.cpp
int __system_property_set(const char* key, const char* value) {
if (key == nullptr) return -1;
if (value == nullptr) value = "";
if (g_propservice_protocol_version == 0) {
detect_protocol_version();
}
if (g_propservice_protocol_version == kProtocolVersion1) {
// Old protocol does not support long names or values
if (strlen(key) >= PROP_NAME_MAX) return -1;
if (strlen(value) >= PROP_VALUE_MAX) return -1;
prop_msg msg;
memset(&msg, 0, sizeof msg);
msg.cmd = PROP_MSG_SETPROP;
strlcpy(msg.name, key, sizeof msg.name);
strlcpy(msg.value, value, sizeof msg.value);
return send_prop_msg(&msg);
} else {
// New protocol only allows long values for ro. properties only.
if (strlen(value) >= PROP_VALUE_MAX && strncmp(key, "ro.", 3) != 0) return -1;
// Use proper protocol
PropertyServiceConnection connection;
if (!connection.IsValid()) {
errno = connection.GetLastError();
async_safe_format_log(
ANDROID_LOG_WARN, "libc",
"Unable to set property \"%s\" to \"%s\": connection failed; errno=%d (%s)", key, value,
errno, strerror(errno));
return -1;
}
SocketWriter writer(&connection);
if (!writer.WriteUint32(PROP_MSG_SETPROP2).WriteString(key).WriteString(value).Send()) {
errno = connection.GetLastError();
async_safe_format_log(ANDROID_LOG_WARN, "libc",
"Unable to set property \"%s\" to \"%s\": write failed; errno=%d (%s)",
key, value, errno, strerror(errno));
return -1;
}
int result = -1;
if (!connection.RecvInt32(&result)) {
errno = connection.GetLastError();
async_safe_format_log(ANDROID_LOG_WARN, "libc",
"Unable to set property \"%s\" to \"%s\": recv failed; errno=%d (%s)",
key, value, errno, strerror(errno));
return -1;
}
if (result != PROP_SUCCESS) {
async_safe_format_log(ANDROID_LOG_WARN, "libc",
"Unable to set property \"%s\" to \"%s\": error code: 0x%x", key, value,
result);
return -1;
}
return 0;
}
}
PropertyServiceConnection connection;
SocketWriter writer(&connection);
这边连接的是 property_service socket。
static const char property_service_socket[] = "/dev/socket/" PROP_SERVICE_NAME;
static const char* kServiceVersionPropertyName = "ro.property_service.version";
class PropertyServiceConnection {
public:
PropertyServiceConnection() : last_error_(0) {
socket_.reset(::socket(AF_LOCAL, SOCK_STREAM | SOCK_CLOEXEC, 0));
if (socket_.get() == -1) {
last_error_ = errno;
return;
}
const size_t namelen = strlen(property_service_socket);
sockaddr_un addr;
memset(&addr, 0, sizeof(addr));
strlcpy(addr.sun_path, property_service_socket, sizeof(addr.sun_path));
addr.sun_family = AF_LOCAL;
socklen_t alen = namelen + offsetof(sockaddr_un, sun_path) + 1;
if (TEMP_FAILURE_RETRY(connect(socket_.get(),
reinterpret_cast<sockaddr*>(&addr), alen)) == -1) {
last_error_ = errno;
socket_.reset();
}
}
这边连接上 init SecondStageMain() 中创建的 property_service socket。
int SecondStageMain(int argc, char** argv) {
StartPropertyService(&property_fd);
void StartPropertyService(int* epoll_socket) {
InitPropertySet("ro.property_service.version", "2");
int sockets[2];
if (socketpair(AF_UNIX, SOCK_SEQPACKET | SOCK_CLOEXEC, 0, sockets) != 0) {
PLOG(FATAL) << "Failed to socketpair() between property_service and init";
}
*epoll_socket = from_init_socket = sockets[0];
init_socket = sockets[1];
StartSendingMessages();
if (auto result = CreateSocket(PROP_SERVICE_NAME, SOCK_STREAM | SOCK_CLOEXEC | SOCK_NONBLOCK,
/*passcred=*/false, /*should_listen=*/false, 0666, /*uid=*/0,
/*gid=*/0, /*socketcon=*/{});
result.ok()) {
property_set_fd = *result;
} else {
LOG(FATAL) << "start_property_service socket creation failed: " << result.error();
}
listen(property_set_fd, 8);
auto new_thread = std::thread{PropertyServiceThread};
property_service_thread.swap(new_thread);
auto async_persist_writes =
android::base::GetBoolProperty("ro.property_service.async_persist_writes", false);
if (async_persist_writes) {
persist_write_thread = std::make_unique<PersistWriteThread>();
}
}
property_set_fd = *result;
listen(property_set_fd, 8); 监听 socket 请求改动 prop
PropertyServiceThread epoll 监听 property_set_fd 句柄变动来调用实际的处理函数 handle_property_set_fd
以上socket的连接和epoll的注册可以说明为什么property_set()为什么被监测到,并走到后续流程
static void PropertyServiceThread() {
Epoll epoll;
if (auto result = epoll.Open(); !result.ok()) {
LOG(FATAL) << result.error();
}
if (auto result = epoll.RegisterHandler(property_set_fd, handle_property_set_fd);
!result.ok()) {
LOG(FATAL) << result.error();
}
if (auto result = epoll.RegisterHandler(init_socket, HandleInitSocket); !result.ok()) {
LOG(FATAL) << result.error();
}
while (true) {
auto epoll_result = epoll.Wait(std::nullopt);
if (!epoll_result.ok()) {
LOG(ERROR) << epoll_result.error();
}
}
}
static void handle_property_set_fd() {
static constexpr uint32_t kDefaultSocketTimeout = 2000; /* ms */
int s = accept4(property_set_fd, nullptr, nullptr, SOCK_CLOEXEC);
if (s == -1) {
return;
}
ucred cr;
socklen_t cr_size = sizeof(cr);
if (getsockopt(s, SOL_SOCKET, SO_PEERCRED, &cr, &cr_size) < 0) {
close(s);
PLOG(ERROR) << "sys_prop: unable to get SO_PEERCRED";
return;
}
SocketConnection socket(s, cr);
uint32_t timeout_ms = kDefaultSocketTimeout;
uint32_t cmd = 0;
if (!socket.RecvUint32(&cmd, &timeout_ms)) {
PLOG(ERROR) << "sys_prop: error while reading command from the socket";
socket.SendUint32(PROP_ERROR_READ_CMD);
return;
}
switch (cmd) {
case PROP_MSG_SETPROP: {
char prop_name[PROP_NAME_MAX];
char prop_value[PROP_VALUE_MAX];
if (!socket.RecvChars(prop_name, PROP_NAME_MAX, &timeout_ms) ||
!socket.RecvChars(prop_value, PROP_VALUE_MAX, &timeout_ms)) {
PLOG(ERROR) << "sys_prop(PROP_MSG_SETPROP): error while reading name/value from the socket";
return;
}
prop_name[PROP_NAME_MAX-1] = 0;
prop_value[PROP_VALUE_MAX-1] = 0;
std::string source_context;
if (!socket.GetSourceContext(&source_context)) {
PLOG(ERROR) << "Unable to set property '" << prop_name << "': getpeercon() failed";
return;
}
const auto& cr = socket.cred();
std::string error;
auto result = HandlePropertySetNoSocket(prop_name, prop_value, source_context, cr, &error);
if (result != PROP_SUCCESS) {
LOG(ERROR) << "Unable to set property '" << prop_name << "' from uid:" << cr.uid
<< " gid:" << cr.gid << " pid:" << cr.pid << ": " << error;
}
break;
}
case PROP_MSG_SETPROP2: {
std::string name;
std::string value;
if (!socket.RecvString(&name, &timeout_ms) ||
!socket.RecvString(&value, &timeout_ms)) {
PLOG(ERROR) << "sys_prop(PROP_MSG_SETPROP2): error while reading name/value from the socket";
socket.SendUint32(PROP_ERROR_READ_DATA);
return;
}
std::string source_context;
if (!socket.GetSourceContext(&source_context)) {
PLOG(ERROR) << "Unable to set property '" << name << "': getpeercon() failed";
socket.SendUint32(PROP_ERROR_PERMISSION_DENIED);
return;
}
// HandlePropertySet takes ownership of the socket if the set is handled asynchronously.
const auto& cr = socket.cred();
std::string error;
auto result = HandlePropertySet(name, value, source_context, cr, &socket, &error);
if (!result) {
// Result will be sent after completion.
return;
}
if (*result != PROP_SUCCESS) {
LOG(ERROR) << "Unable to set property '" << name << "' from uid:" << cr.uid
<< " gid:" << cr.gid << " pid:" << cr.pid << ": " << error;
}
socket.SendUint32(*result);
break;
}
default:
LOG(ERROR) << "sys_prop: invalid command " << cmd;
socket.SendUint32(PROP_ERROR_INVALID_CMD);
break;
}
}
HandlePropertySet，真正的处理函数。
set property msg 分为两类处理:
- msg name以“ctl.”为起始的msg 通过 SendControlMessage() 处理，主要是启动、停止、重启服务。
- 修改其它 prop 时会调用 property_set，然后通过 bionic 的__system_property_set 函数来实现。
std::optional<uint32_t> HandlePropertySet(const std::string& name, const std::string& value,
const std::string& source_context, const ucred& cr,
SocketConnection* socket, std::string* error) {
if (auto ret = CheckPermissions(name, value, source_context, cr, error); ret != PROP_SUCCESS) {
return {ret};
}
if (StartsWith(name, "ctl.")) {
return {SendControlMessage(name.c_str() + 4, value, cr.pid, socket, error)};
}
// sys.powerctl is a special property that is used to make the device reboot. We want to log
// any process that sets this property to be able to accurately blame the cause of a shutdown.
if (name == "sys.powerctl") {
std::string cmdline_path = StringPrintf("proc/%d/cmdline", cr.pid);
std::string process_cmdline;
std::string process_log_string;
if (ReadFileToString(cmdline_path, &process_cmdline)) {
// Since cmdline is null deliminated, .c_str() conveniently gives us just the process
// path.
process_log_string = StringPrintf(" (%s)", process_cmdline.c_str());
}
// MIUI ADD: Init_DebugEnhance
android::base::unique_fd fd_kmsg_cpp(TEMP_FAILURE_RETRY(open("/dev/kmsg", O_WRONLY | O_CLOEXEC)));
if(fd_kmsg_cpp != -1) {
std::string logString("<3> Received sys.powerctl='" + value + "' from pid: " + std::to_string(cr.pid)
+ process_log_string );
WriteStringToFd(logString, fd_kmsg_cpp);
}
LOG(ERROR) << "Received sys.powerctl='" << value << "' from pid: " << cr.pid
<< process_log_string;
// END Init_DebugEnhance
if (value == "reboot,userspace" && !is_userspace_reboot_supported().value_or(false)) {
*error = "Userspace reboot is not supported by this device";
return {PROP_ERROR_INVALID_VALUE};
}
}
// If a process other than init is writing a non-empty value, it means that process is
// requesting that init performs a restorecon operation on the path specified by 'value'.
// We use a thread to do this restorecon operation to prevent holding up init, as it may take
// a long time to complete.
if (name == kRestoreconProperty && cr.pid != 1 && !value.empty()) {
static AsyncRestorecon async_restorecon;
async_restorecon.TriggerRestorecon(value);
return {PROP_SUCCESS};
}
return PropertySet(name, value, socket, error);
}
PropertySet
static std::optional<uint32_t> PropertySet(const std::string& name, const std::string& value,
SocketConnection* socket, std::string* error) {
size_t valuelen = value.size();
if (!IsLegalPropertyName(name)) {
*error = "Illegal property name";
return {PROP_ERROR_INVALID_NAME};
}
if (auto result = IsLegalPropertyValue(name, value); !result.ok()) {
*error = result.error().message();
return {PROP_ERROR_INVALID_VALUE};
}
prop_info* pi = (prop_info*)__system_property_find(name.c_str());
if (pi != nullptr) {
// MIUI ADD: Init_LoadCustProp
#ifdef MIUI_INIT_HOOK
if (!ShouldSkipCheck(name.c_str())) {
#endif
// END Init_LoadCustProp
// ro.* properties are actually "write-once".
if (StartsWith(name, "ro.")) {
*error = "Read-only property was already set";
return {PROP_ERROR_READ_ONLY_PROPERTY};
}
// MIUI ADD: Init_LoadCustProp
#ifdef MIUI_INIT_HOOK
}
#endif
// END Init_LoadCustProp
__system_property_update(pi, value.c_str(), valuelen);
} else {
int rc = __system_property_add(name.c_str(), name.size(), value.c_str(), valuelen);
if (rc < 0) {
*error = "__system_property_add failed";
return {PROP_ERROR_SET_FAILED};
}
}
// Don't write properties to disk until after we have read all default
// properties to prevent them from being overwritten by default values.
if (socket && persistent_properties_loaded && StartsWith(name, "persist.")) {
if (persist_write_thread) {
persist_write_thread->Write(name, value, std::move(*socket));
return {};
}
WritePersistentProperty(name, value);
}
NotifyPropertyChange(name, value);
return {PROP_SUCCESS};
}
void NotifyPropertyChange(const std::string& name, const std::string& value) {
// If init hasn't started its main loop, then it won't be handling property changed messages
// anyway, so there's no need to try to send them.
auto lock = std::lock_guard{accept_messages_lock};
if (accept_messages) {
PropertyChanged(name, value);
}
}
PropertyChanged
void PropertyChanged(const std::string& name, const std::string& value) {
// If the property is sys.powerctl, we bypass the event queue and immediately handle it.
// This is to ensure that init will always and immediately shutdown/reboot, regardless of
// if there are other pending events to process or if init is waiting on an exec service or
// waiting on a property.
// In non-thermal-shutdown case, 'shutdown' trigger will be fired to let device specific
// commands to be executed.
if (name == "sys.powerctl") {
trigger_shutdown(value);
}
if (property_triggers_enabled) {
ActionManager::GetInstance().QueuePropertyChange(name, value);
WakeMainInitThread();
}
prop_waiter_state.CheckAndResetWait(name, value);
}
int SecondStageMain(int argc, char** argv) {
trigger_shutdown = [](const std::string& command) { shutdown_state.TriggerShutdown(command); };
void TriggerShutdown(const std::string& command) {
// We can't call HandlePowerctlMessage() directly in this function,
// because it modifies the contents of the action queue, which can cause the action queue
// to get into a bad state if this function is called from a command being executed by the
// action queue. Instead we set this flag and ensure that shutdown happens before the next
// command is run in the main init loop.
auto lock = std::lock_guard{shutdown_command_lock_};
shutdown_command_ = command;
do_shutdown_ = true;
WakeMainInitThread();
}
std::optional<std::string> CheckShutdown() __attribute__((warn_unused_result)) {
auto lock = std::lock_guard{shutdown_command_lock_};
if (do_shutdown_ && !IsShuttingDown()) {
do_shutdown_ = false;
return shutdown_command_;
}
return {};
}
上面的 PropertyChanged() 调用到 trigger_shutdown()，而 trigger_shutdown = [](const std::string& command) { shutdown_state.TriggerShutdown(command); };，所以实际上调用的是 TriggerShutdown()
TriggerShutdown() 改到 shutdown_command 和 do_shutdown_。
在 init SecondStageMain 里有个循环，CheckShutdown() 根据 do_shutdown_ && !IsShuttingDown() 判断是否返回 shutdown_command_
int SecondStageMain(int argc, char** argv) {
while (true) {
// By default, sleep until something happens. Do not convert far_future into
// std::chrono::milliseconds because that would trigger an overflow. The unit of boot_clock
// is 1ns.
const boot_clock::time_point far_future = boot_clock::time_point::max();
boot_clock::time_point next_action_time = far_future;
auto shutdown_command = shutdown_state.CheckShutdown();
if (shutdown_command) {
LOG(INFO) << "Got shutdown_command '" << *shutdown_command
<< "' Calling HandlePowerctlMessage()";
HandlePowerctlMessage(*shutdown_command);
}
HandlePowerctlMessage
// system/core/init/reboot.cpp
void HandlePowerctlMessage(const std::string& command) {
unsigned int cmd = 0;
std::vector<std::string> cmd_params = Split(command, ",");
std::string reboot_target = "";
bool run_fsck = false;
bool command_invalid = false;
bool userspace_reboot = false;
// MIUI ADD: Recovery_StabilityEnhance
#ifdef MIUI_MONITOR_RECOVERY
save_system_time_file();
#endif
// END Recovery_StabilityEnhance
if (cmd_params[0] == "shutdown") {
cmd = ANDROID_RB_POWEROFF;
if (cmd_params.size() >= 2) {
if (cmd_params[1] == "userrequested") {
// The shutdown reason is PowerManager.SHUTDOWN_USER_REQUESTED.
// Run fsck once the file system is remounted in read-only mode.
run_fsck = true;
} else if (cmd_params[1] == "thermal") {
// Turn off sources of heat immediately.
TurnOffBacklight();
// run_fsck is false to avoid delay
cmd = ANDROID_RB_THERMOFF;
}
}
} else if (cmd_params[0] == "reboot") {
cmd = ANDROID_RB_RESTART2;
if (cmd_params.size() >= 2) {
reboot_target = cmd_params[1];
if (reboot_target == "userspace") {
LOG(INFO) << "Userspace reboot requested";
userspace_reboot = true;
}
// adb reboot fastboot should boot into bootloader for devices not
// supporting logical partitions.
if (reboot_target == "fastboot" &&
!android::base::GetBoolProperty("ro.boot.dynamic_partitions", false)) {
reboot_target = "bootloader";
}
// When rebooting to the bootloader notify the bootloader writing
// also the BCB.
if (reboot_target == "bootloader") {
std::string err;
if (!write_reboot_bootloader(&err)) {
LOG(ERROR) << "reboot-bootloader: Error writing "
"bootloader_message: "
<< err;
}
} else if (reboot_target == "recovery") {
bootloader_message boot = {};
if (std::string err; !read_bootloader_message(&boot, &err)) {
LOG(ERROR) << "Failed to read bootloader message: " << err;
}
// Update the boot command field if it's empty, and preserve
// the other arguments in the bootloader message.
if (!CommandIsPresent(&boot)) {
strlcpy(boot.command, "boot-recovery", sizeof(boot.command));
if (std::string err; !write_bootloader_message(boot, &err)) {
LOG(ERROR) << "Failed to set bootloader message: " << err;
return;
}
}
} else if (reboot_target == "quiescent") {
bootloader_message boot = {};
if (std::string err; !read_bootloader_message(&boot, &err)) {
LOG(ERROR) << "Failed to read bootloader message: " << err;
}
// Update the boot command field if it's empty, and preserve
// the other arguments in the bootloader message.
if (!CommandIsPresent(&boot)) {
strlcpy(boot.command, "boot-quiescent", sizeof(boot.command));
if (std::string err; !write_bootloader_message(boot, &err)) {
LOG(ERROR) << "Failed to set bootloader message: " << err;
return;
}
}
} else if (reboot_target == "sideload" || reboot_target == "sideload-auto-reboot" ||
reboot_target == "fastboot") {
std::string arg = reboot_target == "sideload-auto-reboot" ? "sideload_auto_reboot"
: reboot_target;
const std::vector<std::string> options = {
"--" + arg,
};
std::string err;
if (!write_bootloader_message(options, &err)) {
LOG(ERROR) << "Failed to set bootloader message: " << err;
return;
}
reboot_target = "recovery";
}
// MIUI ADD: PORTING_LogEnhance
#ifdef MIUI_MONITOR_RECOVERY
if (cmd_params[1] == "recovery" || cmd_params[1] == "exaid" || cmd_params[1] == "RescueParty") {
save_reboot_log();
}
#endif
// END PORTING_LogEnhance
// If there are additional parameter, pass them along
for (size_t i = 2; (cmd_params.size() > i) && cmd_params[i].size(); ++i) {
reboot_target += "," + cmd_params[i];
}
}
} else {
command_invalid = true;
}
if (command_invalid) {
LOG(ERROR) << "powerctl: unrecognized command '" << command << "'";
return;
}
// We do not want to process any messages (queue'ing triggers, shutdown messages, control
// messages, etc) from properties during reboot.
StopSendingMessages();
if (userspace_reboot) {
HandleUserspaceReboot();
return;
}
LOG(INFO) << "Clear action queue and start shutdown trigger";
ActionManager::GetInstance().ClearQueue();
// Queue shutdown trigger first
ActionManager::GetInstance().QueueEventTrigger("shutdown");
// Queue built-in shutdown_done
auto shutdown_handler = [cmd, command, reboot_target, run_fsck](const BuiltinArguments&) {
DoReboot(cmd, command, reboot_target, run_fsck);
return Result<void>{};
};
ActionManager::GetInstance().QueueBuiltinAction(shutdown_handler, "shutdown_done");
EnterShutdown();
}
DoReboot
static void DoReboot(unsigned int cmd, const std::string& reason, const std::string& reboot_target,
bool run_fsck) {
Timer t;
LOG(INFO) << "Reboot start, reason: " << reason << ", reboot_target: " << reboot_target;
bool is_thermal_shutdown = cmd == ANDROID_RB_THERMOFF;
auto shutdown_timeout = 0ms;
if (!SHUTDOWN_ZERO_TIMEOUT) {
constexpr unsigned int shutdown_timeout_default = 6;
constexpr unsigned int max_thermal_shutdown_timeout = 3;
auto shutdown_timeout_final = android::base::GetUintProperty("ro.build.shutdown_timeout",
shutdown_timeout_default);
if (is_thermal_shutdown && shutdown_timeout_final > max_thermal_shutdown_timeout) {
shutdown_timeout_final = max_thermal_shutdown_timeout;
}
shutdown_timeout = std::chrono::seconds(shutdown_timeout_final);
}
LOG(INFO) << "Shutdown timeout: " << shutdown_timeout.count() << " ms";
sem_t reboot_semaphore;
if (sem_init(&reboot_semaphore, false, 0) == -1) {
// These should never fail, but if they do, skip the graceful reboot and reboot immediately.
LOG(ERROR) << "sem_init() fail and RebootSystem() return!";
RebootSystem(cmd, reboot_target, reason);
}
// Start a thread to monitor init shutdown process
LOG(INFO) << "Create reboot monitor thread.";
bool reboot_monitor_run = true;
std::thread reboot_monitor_thread(&RebootMonitorThread, cmd, reboot_target, &reboot_semaphore,
shutdown_timeout, &reboot_monitor_run);
reboot_monitor_thread.detach();
// Start reboot monitor thread
sem_post(&reboot_semaphore);
// Ensure last reboot reason is reduced to canonical
// alias reported in bootloader or system boot reason.
size_t skip = 0;
std::vector<std::string> reasons = Split(reason, ",");
if (reasons.size() >= 2 && reasons[0] == "reboot" &&
(reasons[1] == "recovery" || reasons[1] == "bootloader" || reasons[1] == "cold" ||
reasons[1] == "hard" || reasons[1] == "warm")) {
skip = strlen("reboot,");
}
PersistRebootReason(reason.c_str() + skip, true);
// If /data isn't mounted then we can skip the extra reboot steps below, since we don't need to
// worry about unmounting it.
if (!IsDataMounted("*")) {
sync();
RebootSystem(cmd, reboot_target, reason);
abort();
}
bool do_shutdown_animation = GetBoolProperty("ro.init.shutdown_animation", false);
// watchdogd is a vendor specific component but should be alive to complete shutdown safely.
const std::set<std::string> to_starts{"watchdogd"};
std::set<std::string> stop_first;
for (const auto& s : ServiceList::GetInstance()) {
if (kDebuggingServices.count(s->name())) {
// keep debugging tools until non critical ones are all gone.
s->SetShutdownCritical();
} else if (to_starts.count(s->name())) {
if (auto result = s->Start(); !result.ok()) {
LOG(ERROR) << "Could not start shutdown 'to_start' service '" << s->name()
<< "': " << result.error();
}
s->SetShutdownCritical();
} else if (do_shutdown_animation) {
continue;
} else if (s->IsShutdownCritical()) {
// Start shutdown critical service if not started.
if (auto result = s->Start(); !result.ok()) {
LOG(ERROR) << "Could not start shutdown critical service '" << s->name()
<< "': " << result.error();
}
} else {
stop_first.insert(s->name());
}
}
// remaining operations (specifically fsck) may take a substantial duration
if (!do_shutdown_animation && (cmd == ANDROID_RB_POWEROFF || is_thermal_shutdown)) {
TurnOffBacklight();
}
Service* boot_anim = ServiceList::GetInstance().FindService("bootanim");
Service* surface_flinger = ServiceList::GetInstance().FindService("surfaceflinger");
if (boot_anim != nullptr && surface_flinger != nullptr && surface_flinger->IsRunning()) {
if (do_shutdown_animation) {
SetProperty("service.bootanim.exit", "0");
SetProperty("service.bootanim.progress", "0");
// Could be in the middle of animation. Stop and start so that it can pick
// up the right mode.
boot_anim->Stop();
}
for (const auto& service : ServiceList::GetInstance()) {
if (service->classnames().count("animation") == 0) {
continue;
}
// start all animation classes if stopped.
if (do_shutdown_animation) {
service->Start();
}
service->SetShutdownCritical(); // will not check animation class separately
}
if (do_shutdown_animation) {
boot_anim->Start();
surface_flinger->SetShutdownCritical();
boot_anim->SetShutdownCritical();
}
// MIUI ADD: CUST_ThemeResourcesCustom
// fixup bootanim's start_order
// In miui version, boot anim service is restarted in the process of shutdown,
// then make a latest start order. But the service stopped in the opposite order
// that they are started, so there is a big gap between boot anim service and
// surfaceflinger, cause a corner case of splash screen issue. Now we set a
// fixed start order close to surfaceflinger.
if (surface_flinger->start_order() > 0) {
boot_anim->set_start_order(surface_flinger->start_order() + 1);
}
// END CUST_ThemeResourcesCustom
}
// optional shutdown step
// 1. terminate all services except shutdown critical ones. wait for delay to finish
if (shutdown_timeout > 0ms) {
StopServicesAndLogViolations(stop_first, shutdown_timeout / 2, true /* SIGTERM */);
}
// Send SIGKILL to ones that didn't terminate cleanly.
StopServicesAndLogViolations(stop_first, 0ms, false /* SIGKILL */);
SubcontextTerminate();
// Reap subcontext pids.
ReapAnyOutstandingChildren();
// 3. send volume abort_fuse and volume shutdown to vold
Service* vold_service = ServiceList::GetInstance().FindService("vold");
if (vold_service != nullptr && vold_service->IsRunning()) {
// Manually abort FUSE connections, since the FUSE daemon is already dead
// at this point, and unmounting it might hang.
CallVdc("volume", "abort_fuse");
CallVdc("volume", "shutdown");
vold_service->Stop();
} else {
LOG(INFO) << "vold not running, skipping vold shutdown";
}
// logcat stopped here
StopServices(kDebuggingServices, 0ms, false /* SIGKILL */);
// 4. sync, try umount, and optionally run fsck for user shutdown
{
Timer sync_timer;
LOG(INFO) << "sync() before umount...";
sync();
LOG(INFO) << "sync() before umount took" << sync_timer;
}
// 5. drop caches and disable zram backing device, if exist
KillZramBackingDevice();
LOG(INFO) << "Ready to unmount apexes. So far shutdown sequence took " << t;
// 6. unmount active apexes, otherwise they might prevent clean unmount of /data.
if (auto ret = UnmountAllApexes(); !ret.ok()) {
LOG(ERROR) << ret.error();
}
UmountStat stat =
TryUmountAndFsck(cmd, run_fsck, shutdown_timeout - t.duration(), &reboot_semaphore);
// Follow what linux shutdown is doing: one more sync with little bit delay
{
Timer sync_timer;
LOG(INFO) << "sync() after umount...";
sync();
LOG(INFO) << "sync() after umount took" << sync_timer;
}
if (!is_thermal_shutdown) std::this_thread::sleep_for(100ms);
LogShutdownTime(stat, &t);
// Send signal to terminate reboot monitor thread.
reboot_monitor_run = false;
sem_post(&reboot_semaphore);
// Reboot regardless of umount status. If umount fails, fsck after reboot will fix it.
if (IsDataMounted("f2fs")) {
uint32_t flag = F2FS_GOING_DOWN_FULLSYNC;
unique_fd fd(TEMP_FAILURE_RETRY(open("/data", O_RDONLY)));
int ret = ioctl(fd.get(), F2FS_IOC_SHUTDOWN, &flag);
if (ret) {
PLOG(ERROR) << "Shutdown /data: ";
} else {
LOG(INFO) << "Shutdown /data";
}
}
RebootSystem(cmd, reboot_target, reason);
abort();
}
RebootSystem
RebootSystem(unsigned int cmd, const std::string& rebootTarget, const std::string& reboot_reason) {
LOG(INFO) << "Reboot ending, jumping to kernel";
if (!IsRebootCapable()) {
// On systems where init does not have the capability of rebooting the
// device, just exit cleanly.
exit(0);
}
switch (cmd) {
case ANDROID_RB_POWEROFF:
reboot(RB_POWER_OFF);
break;
case ANDROID_RB_RESTART2:
syscall(__NR_reboot, LINUX_REBOOT_MAGIC1, LINUX_REBOOT_MAGIC2,
LINUX_REBOOT_CMD_RESTART2, rebootTarget.c_str());
break;
case ANDROID_RB_THERMOFF:
if (android::base::GetBoolProperty("ro.thermal_warmreset", false)) {
std::string reason = "shutdown,thermal";
if (!reboot_reason.empty()) reason = reboot_reason;
LOG(INFO) << "Try to trigger a warm reset for thermal shutdown";
syscall(__NR_reboot, LINUX_REBOOT_MAGIC1, LINUX_REBOOT_MAGIC2,
LINUX_REBOOT_CMD_RESTART2, reason.c_str());
} else {
reboot(RB_POWER_OFF);
}
break;
}
// In normal case, reboot should not return.
PLOG(ERROR) << "reboot call returned";
abort();
}
Syscall 系统调用到函数 SYSCALL_DEFINE4。
系统调用流程：
SYSCALL_DEFINE4(reboot, int, magic1, int, magic2, unsigned int, cmd, void __user *, arg)
SYSCALL_DEFINE4(reboot 展开后其实是 __arm64_sys_reboot)
// kernel_platform/common/kernel/reboot.c
SYSCALL_DEFINE4(reboot, int, magic1, int, magic2, unsigned int, cmd,
void __user *, arg)
{
struct pid_namespace *pid_ns = task_active_pid_ns(current);
char buffer[256];
int ret = 0;
/* We only trust the superuser with rebooting the system. */
if (!ns_capable(pid_ns->user_ns, CAP_SYS_BOOT))
return -EPERM;
/* For safety, we require "magic" arguments. */
if (magic1 != LINUX_REBOOT_MAGIC1 ||
(magic2 != LINUX_REBOOT_MAGIC2 &&
magic2 != LINUX_REBOOT_MAGIC2A &&
magic2 != LINUX_REBOOT_MAGIC2B &&
magic2 != LINUX_REBOOT_MAGIC2C))
return -EINVAL;
/*
* If pid namespaces are enabled and the current task is in a child
* pid_namespace, the command is handled by reboot_pid_ns() which will
* call do_exit().
*/
ret = reboot_pid_ns(pid_ns, cmd);
if (ret)
return ret;
/* Instead of trying to make the power_off code look like
* halt when pm_power_off is not set do it the easy way.
*/
if ((cmd == LINUX_REBOOT_CMD_POWER_OFF) && !pm_power_off)
cmd = LINUX_REBOOT_CMD_HALT;
mutex_lock(&system_transition_mutex);
switch (cmd) {
case LINUX_REBOOT_CMD_RESTART:
kernel_restart(NULL);
break;
case LINUX_REBOOT_CMD_CAD_ON:
C_A_D = 1;
break;
case LINUX_REBOOT_CMD_CAD_OFF:
C_A_D = 0;
break;
case LINUX_REBOOT_CMD_HALT:
kernel_halt();
do_exit(0);
panic("cannot halt");
case LINUX_REBOOT_CMD_POWER_OFF:
kernel_power_off();
do_exit(0);
break;
case LINUX_REBOOT_CMD_RESTART2:
ret = strncpy_from_user(&buffer[0], arg, sizeof(buffer) - 1);
if (ret < 0) {
ret = -EFAULT;
break;
}
buffer[sizeof(buffer) - 1] = '\0';
kernel_restart(buffer);
break;
#ifdef CONFIG_KEXEC_CORE
case LINUX_REBOOT_CMD_KEXEC:
ret = kernel_kexec();
break;
#endif
#ifdef CONFIG_HIBERNATION
case LINUX_REBOOT_CMD_SW_SUSPEND:
ret = hibernate();
break;
#endif
default:
ret = -EINVAL;
break;
}
mutex_unlock(&system_transition_mutex);
return ret;
}
2.7 重启前kernel部分reboot流程
kernel_restart
void kernel_restart(char *cmd)
{
kernel_restart_prepare(cmd);
migrate_to_reboot_cpu();
syscore_shutdown();
if (!cmd)
pr_emerg("Restarting system\n");
else
pr_emerg("Restarting system with command '%s'\n", cmd);
kmsg_dump(KMSG_DUMP_SHUTDOWN);
machine_restart(cmd);
}
其中 kernel_restart_prepare() 中 blocking_notifier_call_chain(&reboot_notifier_list, SYS_RESTART, cmd); 调用下面两个关键的通知链函数，用于设置 dload mode 和 reboot reason:
qcom_dload_reboot
用于判断重启后是正常启动还是 进 edl 或者 900e
static int qcom_dload_reboot(struct notifier_block *this, unsigned long event,
void *ptr)
{
char *cmd = ptr;
struct qcom_dload *poweroff = container_of(this, struct qcom_dload,
reboot_nb);
/* Clean shutdown, disable dump mode to allow normal restart */
if (!poweroff->in_panic)
set_download_mode(QCOM_DOWNLOAD_NODUMP);
if (cmd) {
if (!strcmp(cmd, "edl"))
set_download_mode(QCOM_DOWNLOAD_EDL);
else if (!strcmp(cmd, "qcom_dload"))
msm_enable_dump_mode(true);
}
if (current_download_mode != QCOM_DOWNLOAD_NODUMP)
reboot_mode = REBOOT_WARM;
return NOTIFY_OK;
}
qcom_reboot_reason_reboot
重启前将 static struct poweroff_reason reasons[] 对应的 flag 值写入寄存器:
qcom_reboot_reason_reboot() 中循环遍历 cmd 判断和数组对应的 cmd 是否相等，将相应的 flag 值写入寄存器
panic_prep_restart() 对应 panic 流程，直接将 0x21 写入寄存器
static struct poweroff_reason reasons[] = {
{ "recovery", 0x01 },
{ "bootloader", 0x02 },
{ "rtc", 0x03 },
{ "dm-verity device corrupted", 0x04 },
{ "dm-verity enforcing", 0x05 },
{ "keys clear", 0x06 },
{ "ffu", 0x41 },
{ "panic", 0x21 },
{ NULL, 0x20 },
{}
};
static int qcom_reboot_reason_reboot(struct notifier_block *this,
unsigned long event, void *ptr)
{
char *cmd = ptr;
struct qcom_reboot_reason *reboot = container_of(this,
struct qcom_reboot_reason, reboot_nb);
struct poweroff_reason *reason;
if (!cmd) {
nvmem_cell_write(reboot->nvmem_cell,
&reasons[RESTART_REASON_NORMAL].pon_reason,
sizeof(reasons[RESTART_REASON_NORMAL].pon_reason));
return NOTIFY_OK;
}
for (reason = reasons; reason->cmd; reason++) {
if (!strcmp(cmd, reason->cmd)) {
nvmem_cell_write(reboot->nvmem_cell,
&reason->pon_reason,
sizeof(reason->pon_reason));
return NOTIFY_OK;
}
}
nvmem_cell_write(reboot->nvmem_cell,
&reason->pon_reason,
sizeof(reason->pon_reason));
return NOTIFY_OK;
}
static int panic_prep_restart(struct notifier_block *this,
unsigned long event, void *ptr)
{
struct qcom_reboot_reason *reboot = container_of(this,
struct qcom_reboot_reason, panic_nb);
nvmem_cell_write(reboot->nvmem_cell,
&reasons[RESTART_REASON_PANIC].pon_reason,
sizeof(reasons[RESTART_REASON_PANIC].pon_reason));
return NOTIFY_DONE;
}
machine_restart
// kernel_platform/common/arch/arm64/kernel/process.c
void machine_restart(char *cmd)
{
/* Disable interrupts first */
local_irq_disable();
smp_send_stop();
/*
* UpdateCapsule() depends on the system being reset via
* ResetSystem().
*/
if (efi_enabled(EFI_RUNTIME_SERVICES))
efi_reboot(reboot_mode, NULL);
/* Now call the architecture specific reboot code. */
do_kernel_restart(cmd);
/*
* Whoops - the architecture was unable to reboot.
*/
printk("Reboot failed -- System halted\n");
while (1);
}
do_kernel_restart
// kernel_platform/common/kernel/reboot.c
void do_kernel_restart(char *cmd)
{
atomic_notifier_call_chain(&restart_handler_list, reboot_mode, cmd);
}
atomic_notifier_call_chain(&restart_handler_list, reboot_mode, cmd);
根据 restart_handler_list 的注册以及是否编译和加 log 判断，这条通知链包含如下函数：
restart_wdog_handler
// kernel_platform/msm-kernel/drivers/soc/qcom/qcom_wdt_core.c
static int restart_wdog_handler(struct notifier_block *this,
unsigned long event, void *ptr)
{
struct msm_watchdog_data *wdog_dd = container_of(this,
struct msm_watchdog_data, restart_blk);
if (WDOG_BITE_ON_PANIC && wdog_dd->in_panic) {
/*
* Trigger a watchdog bite here and if this fails,
* device will take the usual restart path.
*/
pr_info("Triggering late bite\n");
qcom_wdt_trigger_bite();
}
return NOTIFY_DONE;
}
psci_sys_reset
// kernel_platform/common/drivers/firmware/psci/psci.c
static int psci_sys_reset(struct notifier_block *nb, unsigned long action,
void *data)
{
if ((reboot_mode == REBOOT_WARM || reboot_mode == REBOOT_SOFT) &&
psci_system_reset2_supported) {
/*
* reset_type[31] = 0 (architectural)
* reset_type[30:0] = 0 (SYSTEM_WARM_RESET)
* cookie = 0 (ignored by the implementation)
*/
invoke_psci_fn(PSCI_FN_NATIVE(1_1, SYSTEM_RESET2), 0, 0, 0);
} else {
invoke_psci_fn(PSCI_0_2_FN_SYSTEM_RESET, 0, 0, 0);
}
return NOTIFY_DONE;
}
{% tip success %}
注意：关于这条restart_handler_list的内核通知链，在高通项目中是存在一些差异的。有的项目会在msm-poweroff驱动中注册这条通知链，当do_kernel_restart触发通知链时，msm-poweroff也会执行相应的处理函数，从笔者公司的这个项目来看，会往一个地址写0，暂时不知道有什么作用？
{% endtip %}
3. 重启后的reason的传递
重启后 ABL 阶段 GetRebootReason() 从寄存器中获取 flag 值，用于判断 switch (BootReason) 对应 boot mode。
// bootable/bootloader/edk2/QcomModulePkg/Application/LinuxLoader/LinuxLoader.c
STATIC EFI_STATUS GetPmicPONReason(VOID)
{
EFI_STATUS Status = EFI_SUCCESS;
EFI_PM_PON_REASON_TYPE PONReason;
EFI_PM_POFF_REASON_TYPE POFFReason;
EFI_QCOM_PMIC_PON_PROTOCOL *PmicPonProtocol;
BOOLEAN WarmRtStatus;
BOOLEAN IsColdBoot;
Status = gBS->LocateProtocol(&gQcomPmicPonProtocolGuid, NULL,
(VOID **) &PmicPonProtocol);
if (EFI_ERROR(Status)) {
DEBUG((EFI_D_ERROR, "Error locating pmic pon protocol: %d\n", Status));
return Status;
}
/* Passing 0 for PMIC device Index since the protocol infers internally */
Status = PmicPonProtocol->GetPonReason(0, &PONReason);
DEBUG((EFI_D_INFO, "PON Reason is %d\n",PONReason));
if (EFI_ERROR(Status)) {
DEBUG((EFI_D_ERROR, "Error getting pon reason: %d\n", Status));
return Status;
}
/* Passing 0 for PMIC device Index since the protocol infers internally */
Status = PmicPonProtocol->GetPoffReason(0, &POFFReason);
if (EFI_ERROR(Status)) {
DEBUG((EFI_D_ERROR, "Error getting poff reason: %d\n", Status));
return Status;
}
Status = PmicPonProtocol->WarmResetStatus(0, &WarmRtStatus);
if (EFI_ERROR(Status)) {
DEBUG((EFI_D_ERROR, "Error getting warm reset status: %d\n", Status));
return Status;
}
IsColdBoot = !WarmRtStatus;
DEBUG((EFI_D_INFO, " PON Reason is %d cold_boot:%d\n",
PONReason, IsColdBoot));
pureason |= *((uint8_t *)(&PONReason));
//pureason |= *(uint8_t *)&PONReason;
if (!IsColdBoot)
pureason |= WARM_RST;
pdreason |= *((uint8_t *)(&POFFReason));
DEBUG((EFI_D_ERROR, "LinuxLoader-GetPmicPONReason: pureason=0x%x, pdreason=0x%x\n", pureason, pdreason));
return Status;
}
switch (BootReason) {
case FASTBOOT_MODE:
BootIntoFastboot = TRUE;
pureason |= RESTART_EVENT_NORMAL;
DEBUG ((EFI_D_ERROR, "FASTBOOT_MODE : pureason=0x%x\n", pureason));
goto_fastboot_reason = REASON_REBOOT_CMD;
break;
case RECOVERY_MODE:
BootIntoRecovery = TRUE;
pureason |= RESTART_EVENT_NORMAL;
DEBUG ((EFI_D_ERROR, "RECOVERY_MODE : pureason=0x%x\n", pureason));
break;
case ALARM_BOOT:
BootReasonAlarm = TRUE;
pureason |= RESTART_EVENT_NORMAL;
DEBUG ((EFI_D_ERROR, "ALARM_BOOT : pureason=0x%x\n", pureason));
break;
case DM_VERITY_ENFORCING:
// write to device info
Status = EnableEnforcingMode (TRUE);
if (Status != EFI_SUCCESS)
goto stack_guard_update_default;
pureason |= RESTART_EVENT_DVE;
DEBUG ((EFI_D_ERROR, "DM_VERITY_ENFORCING : pureason=0x%x\n", pureason));
break;
case DM_VERITY_LOGGING:
/* Disable MDTP if it's Enabled through Local Deactivation */
Status = MdtpDisable ();
if (EFI_ERROR (Status) && Status != EFI_NOT_FOUND) {
DEBUG ((EFI_D_ERROR, "MdtpDisable Returned error: %r\n", Status));
goto stack_guard_update_default;
}
pureason |= RESTART_EVENT_DVL;
DEBUG ((EFI_D_ERROR, "DM_VERITY_LOGGING : pureason=0x%x\n", pureason));
// write to device info
Status = EnableEnforcingMode (FALSE);
if (Status != EFI_SUCCESS)
goto stack_guard_update_default;
break;
case DM_VERITY_KEYSCLEAR:
Status = ResetDeviceState ();
if (Status != EFI_SUCCESS) {
DEBUG ((EFI_D_ERROR, "VB Reset Device State error: %r\n", Status));
goto stack_guard_update_default;
}
pureason |= RESTART_EVENT_DVK;
DEBUG ((EFI_D_ERROR, "DM_VERITY_KEYSCLEAR : pureason=0x%x\n", pureason));
break;
case NORMAL_MODE:
pureason |= RESTART_EVENT_OTHER;
DEBUG ((EFI_D_ERROR, "RESTART_EVENT_OTHER NORMAL_MODE : pureason=0x%x\n", pureason));
break;
case REBOOT_MODE:
pureason |= RESTART_EVENT_NORMAL;
DEBUG ((EFI_D_ERROR, "REBOOT_MODE : pureason=0x%x\n", pureason));
break;
case FASTBOOT_REBOOT_MODE:
pureason |= RESTART_EVENT_FASTBOOT;
DEBUG ((EFI_D_ERROR, "FASTBOOT_REBOOT_MODE : pureason=0x%x\n", pureason));
break;
case KPANIC_MODE:
pureason |= RESTART_EVENT_KPANIC;
DEBUG ((EFI_D_ERROR, "KPANIC_MODE : pureason=0x%x\n", pureason));
break;
pureason 为全局变量，赋值完成后在 UpdateCmdLine() 里添加到 cmdline 里。
// bootable/bootloader/edk2/QcomModulePkg/Library/BootLib/UpdateCmdLine.c
AsciiSPrint (PuReason, sizeof (PuReason),
" bootinfo.pureason=0x%x", pureason);
CmdLineLen += AsciiStrLen(PuReason);
